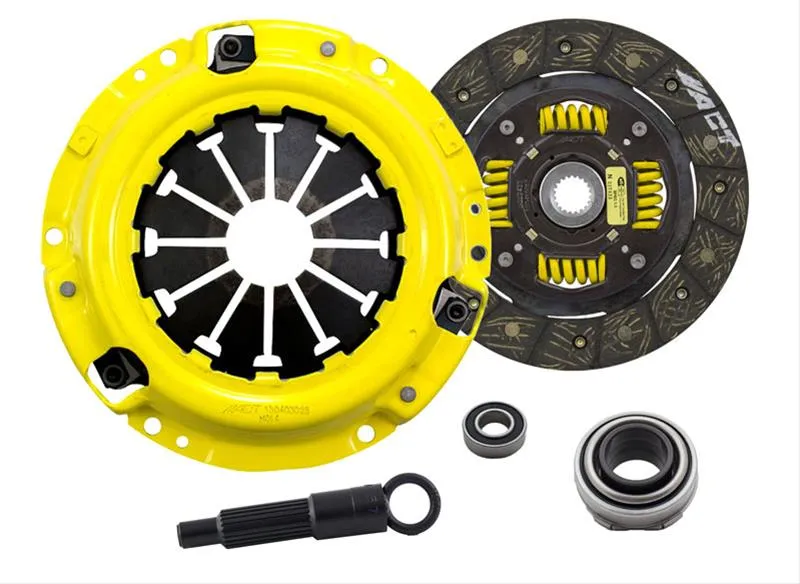

Brand: Advanced Clutch Technology
Manufacturer's Part Number: HC2-HDSS
Part Type: Clutch Kits
Product Line: ACT Heavy-Duty Clutch Kits
Automotive Fittings Part Number: ACL-HC2-HDSS
UPC: 00842385020682
Clutch Usage: Performance
Clutch Disc Quantity: 1
Flywheel Included: No
Input Spline Quantity: 21
Input Shaft Diameter: 0.875 in.
Disc Diameter (in.): 7.900 in.
Disc Diameter (mm): 201mm
Disc Material: Organic
Disc Style: Full face
Hub Style: Sprung
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Throwout Bearing Style: Standard
Alignment Tool Included: Yes
Pilot Bushing Included: Yes
Pilot Bushing Material: Steel roller bearing
Counterweight Assist: No
Mounting Hardware Included: No
Quantity: Sold as a kit.
Notes: For use with factory flywheel and applications up to 210 ft.-lbs. of torque. Designed for naturally aspirated SOHC engines only.
Description:
ACT heavy-duty clutch kits offer a clamp load increase of 20 to 50 percent over OEM, significantly increasing torque capacity. The pedal feel with these clutches varies from stock to a moderate increase. Available for street and race applications, many are SFI-certified to ensure safety.
